The library will be tested using the 8×8 multiplier example multi8b supplied with the Alliance software. The regular synthesis flow uses four programs in sequence to convert file multi8.vhd to a structural logic description multi8.vst. In the classical flow defined by Alliance, this is done with four commands:

This transforms in sequence multi8.vhd > multi8.vbe > multi8_o.vbe > multi8_o.vst > multi8.vst.

Programs VASY and BOOM refine a VHDL description to an RTL level. BOOG maps this to a structural logic description. LOON optimises the netlist for speed and area.

One objective of this paper is to define a more sophisticated command sequence which will give a faster netlist.

The first two programs work at the behavioural level and do not reference any standard cell library. So the starting point for the sclib testing will be the netlist produced by BOOM. However, I have found that this netlist can be improved by applying a sequence of BOOM commands:

The VHDL description multi8.vbe synthesises to a smaller and faster netlist that multi8_boom.vbe. The BOOM option -n applies a "no optimisation" algorithm, but a logic simplification is done which, for example, reduces the number of cell pins connected to a power supply. So the starting point will actually be the BOOM netlist multi8.vbe produced after the four BOOM steps above.

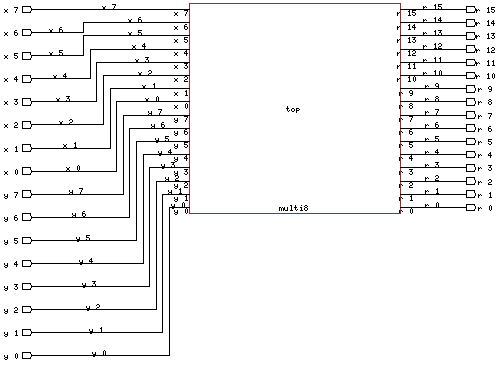

Top view of the 8×8 multiplier. 8x8 multiplier example

entity multi8_top is
   port (
      x   : in      bit_vector(7 downto 0);
      y   : in      bit_vector(7 downto 0);
      r   : out     bit_vector(15 downto 0);
      vdd : in      bit;
      vss : in      bit
 );
end multi8_top;
architecture structural of multi8_top is
Component multi8
   port (
      x   : in      bit_vector(7 downto 0);
      y   : in      bit_vector(7 downto 0);
      r   : out     bit_vector(15 downto 0);
      vdd : in      bit;
      vss : in      bit
 );
end component;
begin
top : multi8
   port map (
      x   => x,
      y   => y,
      r   => r,
      vdd => vdd,
      vss => vss
   );
end structural;
