or3 standard cell family
3-I/P OR gate
UP
PREV
NEXT

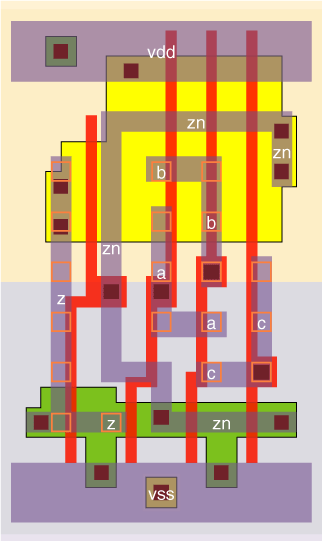

3 I/P OR gate designed with a large input stage. This reduces the delay, especially when the wire capacitance on the input pin is high.
z:(a+b+c)
cell width
power
Generic 0.13um typical timing (ps & ps/fF), pin
c
.
leakage
dynamic
tR=PropR+RampR×Load(fF), tF=PropF+RampF×Load(fF)
vxlib013
gates
lambda
0.13um
nW
nW/MHz
PinCap
PropR
RampR
PropF
RampF
or3_x1
2.0
60
3.30
1.02
20.6
5.0f
89
2.96
107
2.33
or3_x1
Effort
FO4
Log.
a
/\
¯_
2.64
b
/\
¯_
2.47
c
/\
¯_
2.16
Web data book for the vxlib. V
dd
=1.2V, T=27°C, nominal process, generic 0.13um technology. Copyright © 2005-2008 Graham Petley. 11 JAN 2008
