oai21 standard cell family

2-OR into 2-NAND gate
oai21 symbol
x1 drive strength cell, with a P/N ratio of about 1.28 for the a1 and a2 inputs, and about 2.4 for the b input.
z:((a1+a2)*b)' cell width power Generic 0.13um typical timing (ps & ps/fF), pin a2.
leakage dynamic tR=PropR+RampR×Load(fF), tF=PropF+RampF×Load(fF)
vgalib013 gates lambda 0.13um nW nW/MHz PinCap PropR RampR PropF RampF
oai21v0x1 2.7  64 3.52  0.81  14.4  4.8f  72  4.48  39  2.06
oai21v0x1

Effort
FO4 Log.
a1 /\ 1.90 1.91
¯_
a2 /\ 1.71 1.85
¯_
b /\ 1.19 1.25
¯_

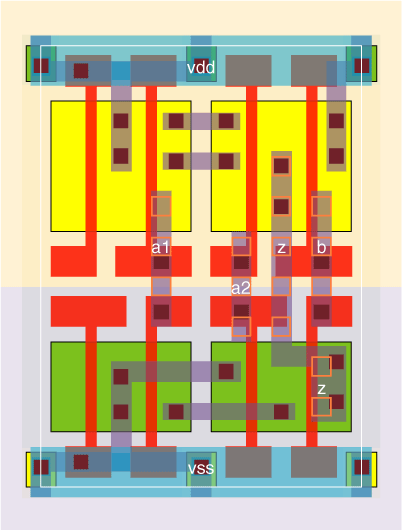

oai21v0x1 schematic oai21v0x1 standard cell layout
