nd2 standard cell family

2-I/P NAND gate
nd2 symbol
Single stage 2-I/P NAND gates with x2 and x4 drive strengths and a P:N ratio of about 2.4. The nd2v6x4 is a layout variant of the nd2v0x4.
z:(a*b)' cell width power Generic 0.13um typical timing (ps & ps/fF), pin b.
leakage dynamic tR=PropR+RampR×Load(fF), tF=PropF+RampF×Load(fF)
vgalib013 gates lambda 0.13um nW nW/MHz PinCap PropR RampR PropF RampF
nd2v0x2 1.3  32 1.76  0.81   9.3  4.9f  43  2.27  37  2.04
nd2v0x4 2.7  64 3.52 1.62  17.1  9.6f  42  1.13  35  1.02
nd2v6x4 2.7  64 3.52 1.62  17.3  9.4f  42  1.13  35  1.02
nd2v0x2

Effort
FO4 Log.
a /\ 1.23 1.26
¯_
b /\ 1.18 1.23
¯_

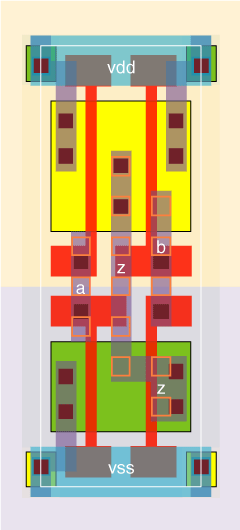

nd2v0x2 schematic nd2v0x2 standard cell layout
nd2v0x4

Effort
FO4 Log.
a /\ 1.20 1.22
¯_
b /\ 1.15 1.20
¯_

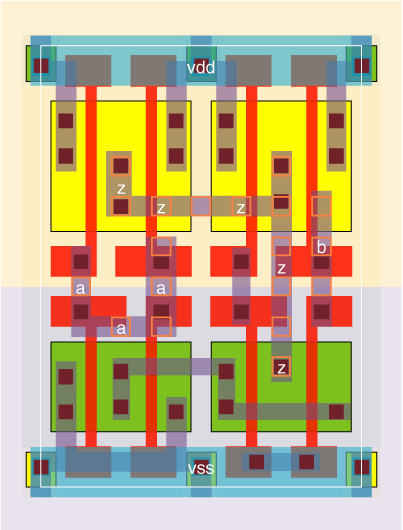

nd2v0x4 schematic nd2v0x4 standard cell layout
nd2v6x4

Effort
FO4 Log.
a /\ 1.21 1.23
¯_
b /\ 1.14 1.19
¯_

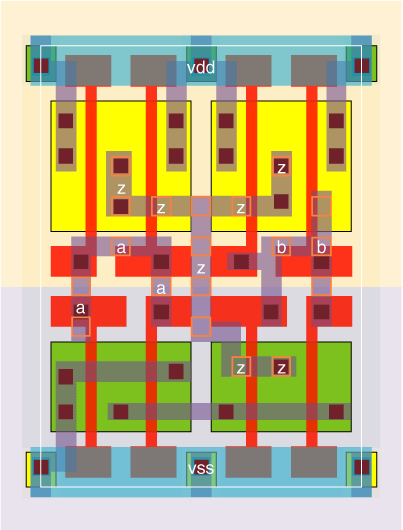

nd2v6x4 schematic nd2v6x4 standard cell layout
