o2 standard cell family

 2-I/P OR gate
o2 symbol
2 I/P OR gate with a stage effort of about 2.2 for the o2_x2 and about 4.4 for the o2_x4.
q:(i0+i1) cell width power Generic 0.13um typical timing (ps & ps/fF), pin i1.
leakage dynamic tR=PropR+RampR×Load(fF), tF=PropF+RampF×Load(fF)
sxlib013 gates lambda 0.13um nW nW/MHz PinCap PropR RampR PropF RampF
o2_x2 1.7  50 2.75 1.27  29.1  4.7f  81  1.49 110  1.17
o2_x4 2.0  60 3.30 1.96  45.7  4.4f 100  0.74 142  0.59
o2_x2

Effort
FO4 Log.
i0 /\
¯_ 1.89
i1 /\
¯_ 1.72
o2_x2 schematic o2_x2 standard cell layout
o2_x4

Effort
FO4 Log.
i0 /\
¯_ 2.06
i1 /\
¯_ 1.91

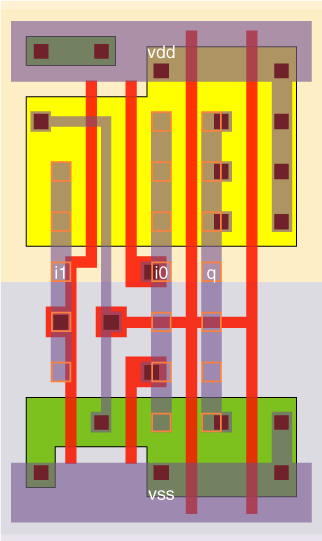

o2_x4 schematic o2_x4 standard cell layout
Web data book for the sxlib. Vdd=1.2V, T=27°C, nominal process, generic 0.13um technology.   Copyright © 2005-2008 Graham Petley.  11 JAN 2008
