na4 standard cell family

 4-I/P NAND gate
na4 symbol
The na4_x1 is a single stage 4-NAND with P/N ratio of about 3. The na4_x4 is a 3 stage 4-NAND with stage efforts of about 1.2 and 3.9.
nq:(i0*i1*i2*i3)' cell width power Generic 0.13um typical timing (ps & ps/fF), pin i3.
leakage dynamic tR=PropR+RampR×Load(fF), tF=PropF+RampF×Load(fF)
sxlib013 gates lambda 0.13um nW nW/MHz PinCap PropR RampR PropF RampF
na4_x1 2.0  60 3.30 1.16  12.8  4.5f  56  3.00  48  3.29
na4_x4 3.3 100 5.50 2.89  60.3  4.9f 153  0.74 172  0.57
na4_x1

Effort
FO4 Log.
i0 /\ 1.79 1.65
¯_
i1 /\ 1.77 1.72
¯_
i2 /\ 1.66 1.69
¯_
i3 /\ 1.55 1.66
¯_

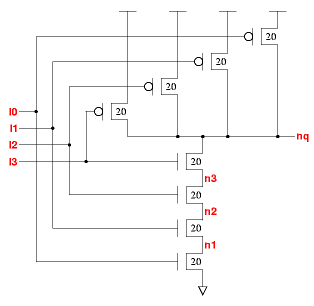

na4_x1 schematic na4_x1 standard cell layout
na4_x4

Effort
FO4 Log.
i0 /\ 2.81 0.36
¯_
i1 /\ 2.75 0.38
¯_
i2 /\ 2.64 0.38
¯_
i3 /\ 2.52 0.38
¯_

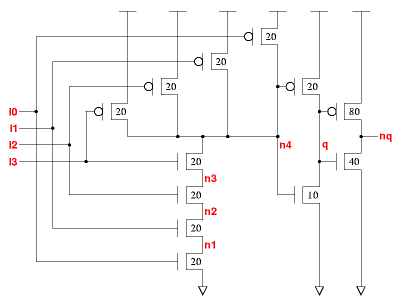

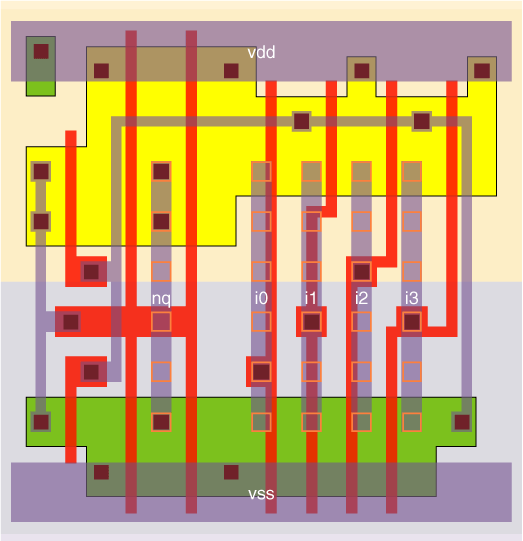

na4_x4 schematic na4_x4 standard cell layout
Web data book for the sxlib. Vdd=1.2V, T=27°C, nominal process, generic 0.13um technology.   Copyright © 2005-2008 Graham Petley.  11 JAN 2008
