ao2o22 standard cell family

 2×2-OR into 2-AND gate
ao2o22 symbol
2-2 I/P OR-AND gate with a stage effort of about 3.5 for the ao2o22_x2, and about 7 for the ao2o22_x4.
q:((i2+i3)*(i0+i1)) cell width power Generic 0.13um typical timing (ps & ps/fF), pin i1.
leakage dynamic tR=PropR+RampR×Load(fF), tF=PropF+RampF×Load(fF)
sxlib013 gates lambda 0.13um nW nW/MHz PinCap PropR RampR PropF RampF
ao2o22_x2 3.0  90 4.95 1.39  29.5  3.6f 104  1.49 144  1.19
ao2o22_x4 3.3 100 5.50 2.08  46.8  3.4f 133  0.75 191  0.62
ao2o22_x2

Effort
FO4 Log.
i0 /\
¯_ 2.20
i1 /\
¯_ 2.06
i2 /\
¯_ 2.31
i3 /\
¯_ 2.47

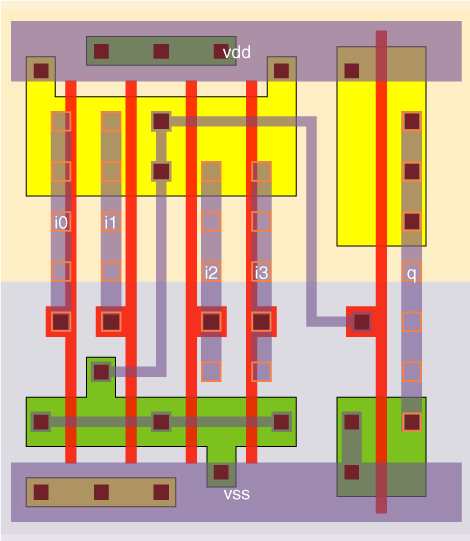

ao2o22_x2 schematic ao2o22_x2 standard cell layout
ao2o22_x4

Effort
FO4 Log.
i0 /\
¯_ 2.61
i1 /\
¯_ 2.46
i2 /\
¯_ 2.71
i3 /\
¯_ 2.87

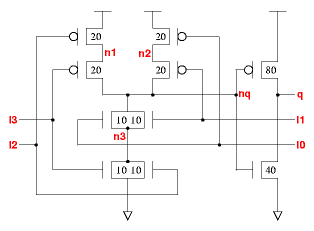

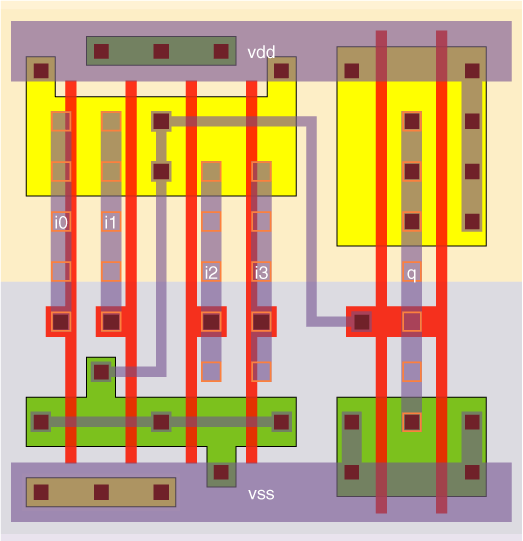

ao2o22_x4 schematic ao2o22_x4 standard cell layout
Web data book for the sxlib. Vdd=1.2V, T=27°C, nominal process, generic 0.13um technology.   Copyright © 2005-2008 Graham Petley.  11 JAN 2008
