nmx2 standard cell family

Inverting 2-way multiplexers
nmx2 symbol
The nmx2_x1 is a single stage inverting mux with a P/N ratio of 1.7. The control signal cmd can be 1 or 2 delay stages with a stage effort of about 2. The nmx2_x4 is a 3 stage inverting mux with stage efforts of about 1.7 and 3.9. The control signal cmd can have 3 or 4 stages with stage efforts of about 1, 1.7 and 3.9.
nq:((i0*cmd')+(i1*cmd))' cell width power Generic 0.13um typical timing (ps & ps/fF), pin i0.
leakage dynamic tR=PropR+RampR×Load(fF), tF=PropF+RampF×Load(fF)
ssxlib013 gates lambda 0.13um nW nW/MHz PinCap PropR RampR PropF RampF
nmx2_x1 2.3  70 3.85 1.73  22.0  6.3f  69  3.02  54  2.06
nmx2_x4 4.0 120 6.60 2.77  59.8  3.5f 204  0.76 190  0.61
nmx2_x1

Effort
FO4 Log.
cmd /\ 2.02 2.88
¯_ 2.47
i0 /\ 1.80 1.87
¯_
i1 /\ 1.79 1.81
¯_

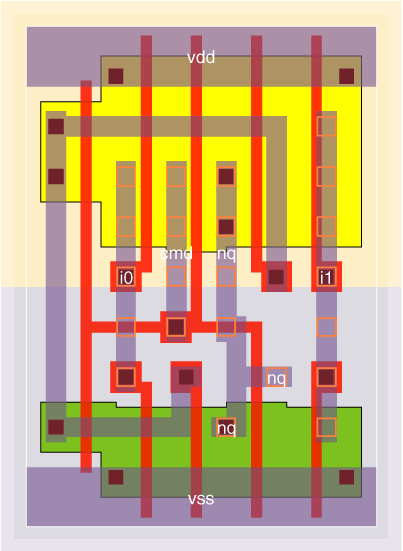

nmx2_x1 schematic nmx2_x1 standard cell layout
nmx2_x4

Effort
FO4 Log.
cmd /\ 2.80 0.59
¯_ 3.37
i0 /\ 2.96 0.28
¯_
i1 /\ 2.92 0.29
¯_

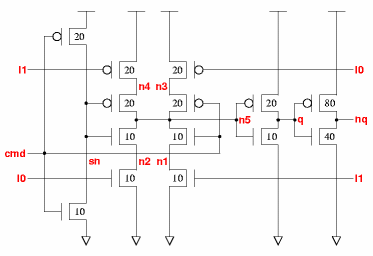

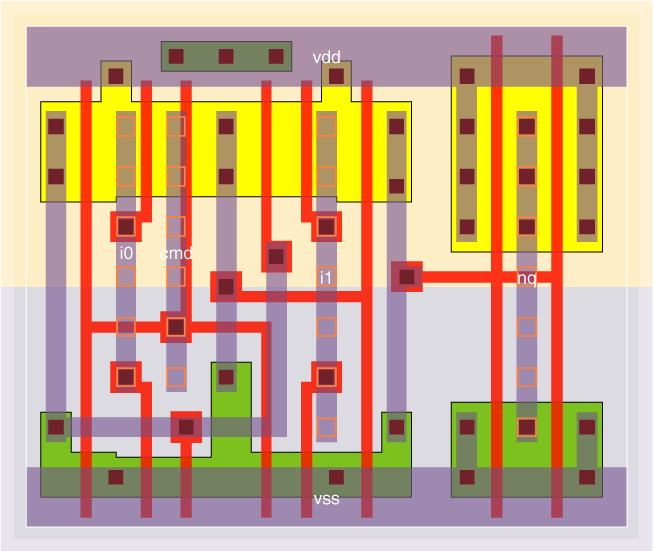

nmx2_x4 schematic nmx2_x4 standard cell layout
