xor2 standard cell family

2-I/P exclusive OR gate
xor2 symbol
2-input XOR gate with output P/N ratio of about 1.25. The Prop and Ramp delays below are the average of the inverting and non-inverting delays. The Synopsys Liberty format .LIB file has the correct delays for each case.
z:(a^b) cell width power Generic 0.13um typical timing (ps & ps/fF), pin a.
leakage dynamic tR=PropR+RampR×Load(fF), tF=PropF+RampF×Load(fF)
rgalib013 gates lambda 0.13um nW nW/MHz PinCap PropR RampR PropF RampF
xor2v0x1 4.0  96 5.28 1.66  31.9  5.7f  82  2.82  76  1.67
xor2v0x1

Effort
FO4 Log.
a /\ 1.60 1.29
¯_ 2.12
b /\ 2.32 3.13
¯_ 2.24

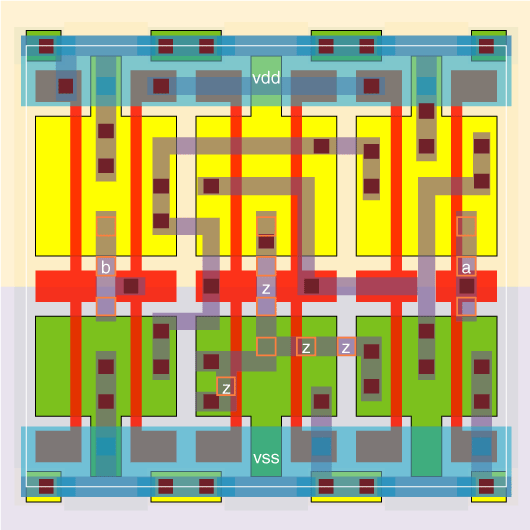

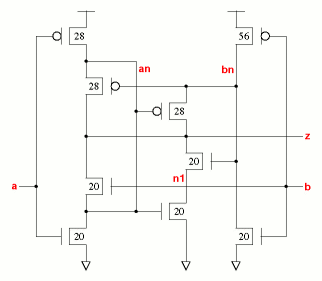

xor2v0x1 schematic xor2v0x1 standard cell layout
