iv1 standard cell family

inverter
iv1 symbol
There are five inverters with drive strengths from x2 to x12 and a P:N ratio of 1.4. There are also additional layout variants v6 and v7. The effort tables show the effort relative to the reference inverter in the vsclib, the iv1v2x2, which has a P:N ratio of 2.25.
z:a' cell width power Generic 0.13um typical timing (ps & ps/fF), pin a.
leakage dynamic tR=PropR+RampR×Load(fF), tF=PropF+RampF×Load(fF)
rgalib013 gates lambda 0.13um nW nW/MHz PinCap PropR RampR PropF RampF
iv1v0x2 1.3  32 1.76  0.55   8.4  5.4f  41  2.11  31  1.14
iv1v6x2 1.3  32 1.76  0.55   8.1  5.5f  40  2.11  31  1.14
iv1v0x4 1.3  32 1.76 1.11  16.2 10.6f  40  1.06  30  0.57
iv1v6x4 1.3  32 1.76 1.11  14.9 10.6f  39  1.06  30  0.57
iv1v7x4 1.3  32 1.76 1.11  14.8 10.4f  39  1.06  30  0.57
iv1v0x6 2.7  64 3.52 1.66  22.8 15.8f  39  0.70  30  0.38
iv1v0x8 2.7  64 3.52 2.22  29.5 20.9f  39  0.53  30  0.28
iv1v0x12 4.0  96 5.28 3.33  44.4 31.4f  39  0.35  30  0.19
iv1v0x2

Effort
FO4 Log.
a /\ 1.02 1.03
¯_

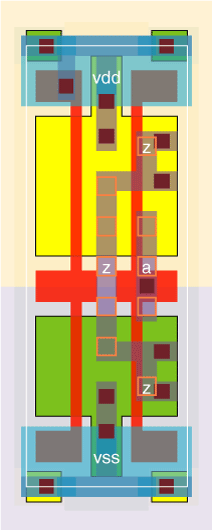

iv1v0x2 schematic iv1v0x2 standard cell layout
iv1v6x2

Effort
FO4 Log.
a /\ 1.02 1.05
¯_

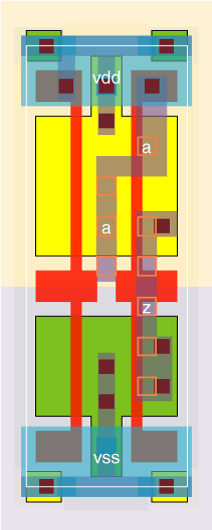

iv1v6x2 schematic iv1v6x2 standard cell layout
iv1v0x4

Effort
FO4 Log.
a /\ 1.00 1.01
¯_

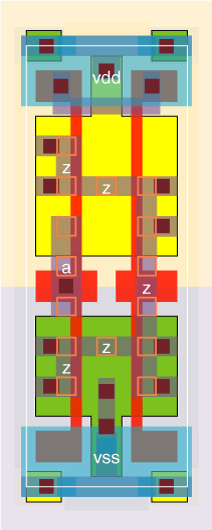

iv1v0x4 schematic iv1v0x4 standard cell layout
iv1v6x4

Effort
FO4 Log.
a /\ 0.99 1.01
¯_

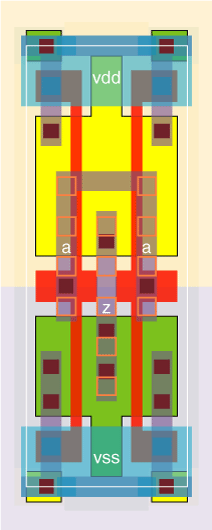

iv1v6x4 schematic iv1v6x4 standard cell layout
iv1v7x4

Effort
FO4 Log.
a /\ 0.98 0.99
¯_

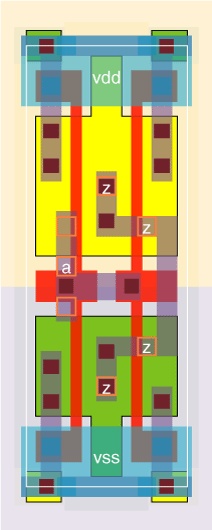

iv1v7x4 schematic iv1v7x4 standard cell layout
iv1v0x6

Effort
FO4 Log.
a /\ 0.99 1.00
¯_

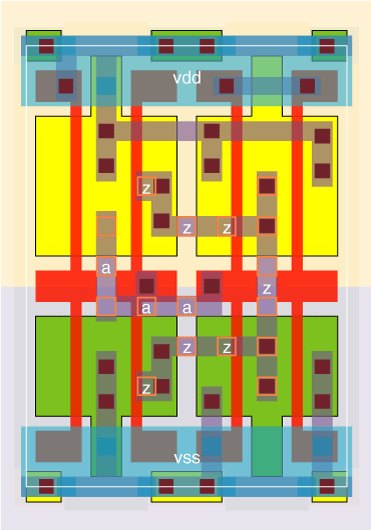

iv1v0x6 schematic iv1v0x6 standard cell layout
iv1v0x8

Effort
FO4 Log.
a /\ 0.98 0.99
¯_

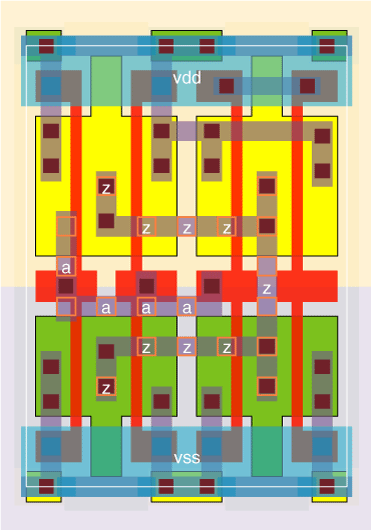

iv1v0x8 schematic iv1v0x8 standard cell layout
iv1v0x12

Effort
FO4 Log.
a /\ 0.98 0.99
¯_

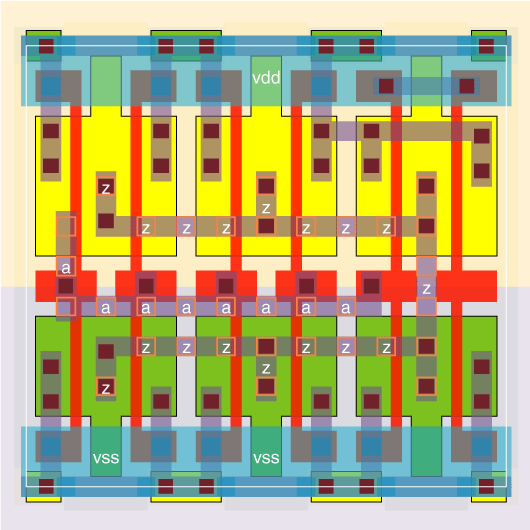

iv1v0x12 schematic iv1v0x12 standard cell layout
