aon22 standard cell family

 2×2-AND into 2-OR gate
aon22 symbol
2 cells with different drive strengths, each with a P/N ratio of about 2. The aon22_x1 has a stage effort of about 1.7 and the aon22_x2 about 2.2.
z:((a1*a2)+(b1*b2)) cell width power Generic 0.13um typical timing (ps & ps/fF), pin b2.
leakage dynamic tR=PropR+RampR×Load(fF), tF=PropF+RampF×Load(fF)
vxlib013 gates lambda 0.13um nW nW/MHz PinCap PropR RampR PropF RampF
aon22_x1 2.7  80 4.40 1.22  20.6  4.6f  84  2.97 101  2.31
aon22_x2 3.0  90 4.95 1.93  32.7  6.4f  87  1.56 103  1.21
aon22_x1

Effort
FO4 Log.
a1 /\
¯_ 2.43
a2 /\
¯_ 2.40
b1 /\
¯_ 2.09
b2 /\
¯_ 2.03

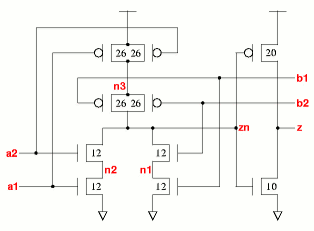

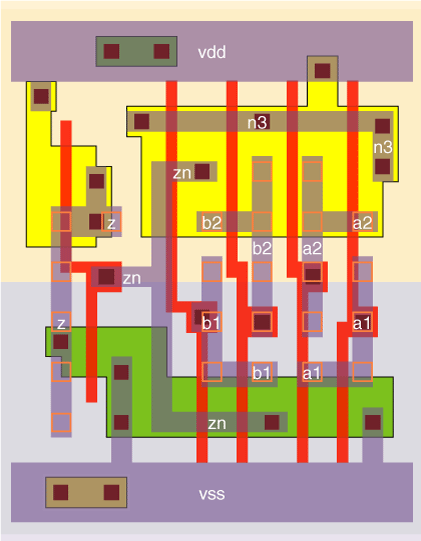

aon22_x1 schematic aon22_x1 standard cell layout
aon22_x2

Effort
FO4 Log.
a1 /\
¯_ 2.29
a2 /\
¯_ 2.25
b1 /\
¯_ 1.93
b2 /\
¯_ 1.87

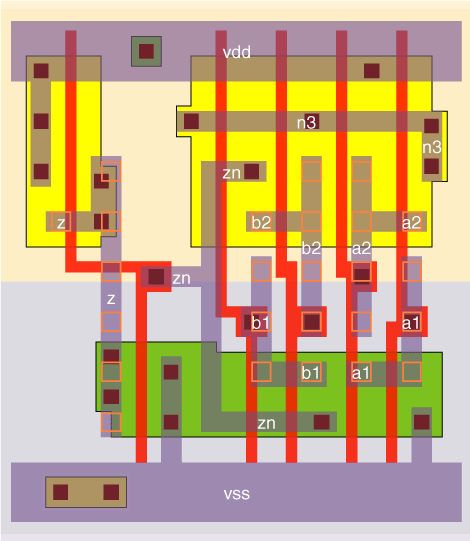

aon22_x2 schematic aon22_x2 standard cell layout
Web data book for the vxlib. Vdd=1.2V, T=27°C, nominal process, generic 0.13um technology.   Copyright © 2005-2008 Graham Petley.  11 JAN 2008
