an12 standard cell family

2-I/P NOR gate with inverted input
an12 symbol
The an12_x1 is a single stage 2-NOR with one inverted input having a stage effort of about 1.6 and output P/N ratio of 2.3. The an12_x4 is a 2-NAND with an inverted input driving an output inverter, with stage efforts of about 1.3 and 3.6 and output P/N ratio of 2.
q:(i0+i1')' cell width power Generic 0.13um typical timing (ps & ps/fF), pin i0.
leakage dynamic tR=PropR+RampR×Load(fF), tF=PropF+RampF×Load(fF)
ssxlib013 gates lambda 0.13um nW nW/MHz PinCap PropR RampR PropF RampF
an12_x1 1.7  50 2.75 1.04  10.3  5.3f  45  2.98  45  2.29
an12_x4 2.7  80 4.40 2.43  56.9  3.9f 131  0.76 144  0.61
an12_x1

Effort
FO4 Log.
i0 /\ 1.44 1.61
¯_
i1 /\
¯_ 1.97

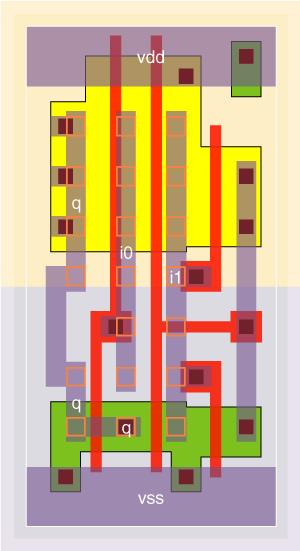

an12_x1 schematic an12_x1 standard cell layout
an12_x4

Effort
FO4 Log.
i0 /\ 2.12 0.31
¯_
i1 /\
¯_ 1.75

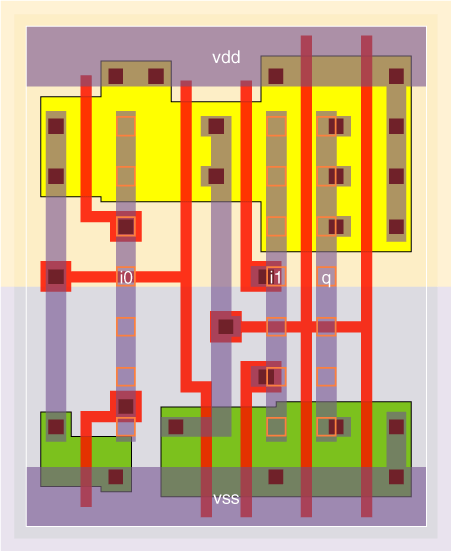

an12_x4 schematic an12_x4 standard cell layout
